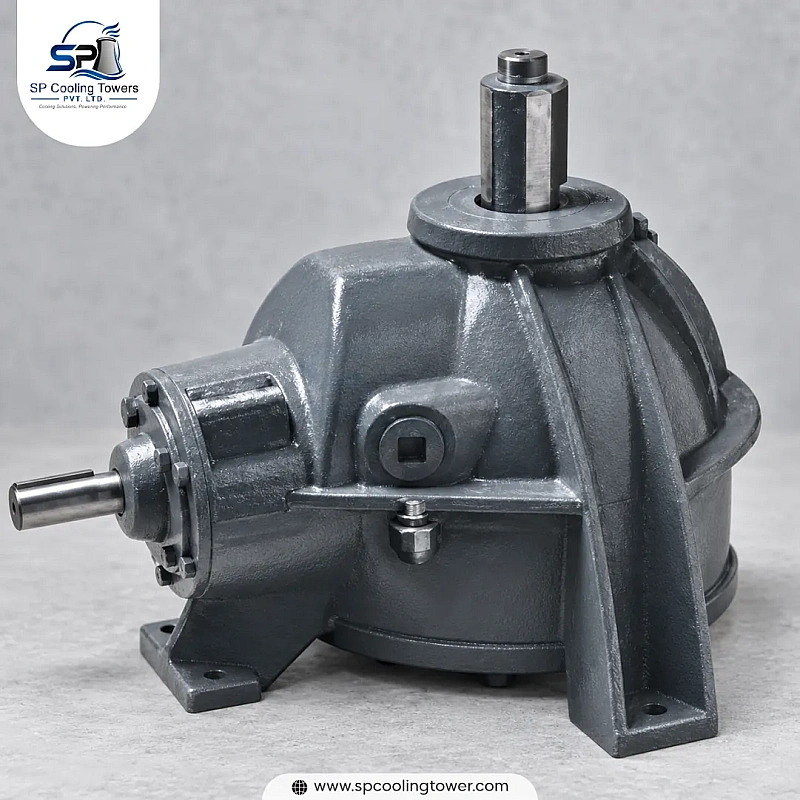

Cooling Tower Gear Box Manufacturer in India

Physical size is not enough to determine which gearbox is to be used. It is only suitable for a full drive system.

Some of the key selection criteria are:

• Motor power
• Motor speed
• Required fan RPM
• Gear ratio
• Output torque
• Arrangement of the Input/output shafts.
• Fan diameter
• Duty cycle
• Lubrication system
• Operating temperature
• Mounting arrangement
• Cooling tower configuration

Our approach is to consider these parameters together when evaluating a gearbox requirement.

What Is a Cooling Tower Gearbox?

Cooling tower gearbox is a mechanical transmission device that is used to transmit power from the motor to the cooling tower fan.

Typical arrangement:

Motor → Gearbox → Fan Shaft → Cooling Tower Fan

The input rotation is provided by the motor. The gearbox takes the input speed and brings it down to the desired fan speed, and transfers the torque through the output shaft. The cooling tower fan can be used at a speed that is reasonable for the cooling tower's desired airflow requirement as opposed to operating at the higher speed of the motor. Thus, the gearbox is directly connected to the fan's operation, energy consumption, mechanical loading and overall system reliability.

Working Principle of a Cooling Tower Gear Box

The operating principle is the mechanical speed reduction with control.

The rotational power is fed into the gearbox through the input shaft when the motor starts to run. This is accomplished by using the appropriate gear ratio to pass power internally. The output shaft will then rotate at a lower speed but with a higher torque, which is the amount of torque needed to drive the cooling tower fan.

For instance, a motor that runs at a relatively high RPM may not be suitable to run directly on the fan. The gear box takes this speed down in accordance with the gear box ratio.

The general procedure is:

1. Power input – This is where the motor gives power to move around in rotation.
2. Internal gearing – Reduces the speed of rotation.
3. Torque transmission – The gearbox is capable of transmitting the desired torque through the output shaft.
4. Fan drive – shaft on which the cooling tower fan is mounted.
5. Air movement – Fan rotation provides the air movement that is necessary for heat rejection.

The exact gear box design and gear ratio will vary based on the cooling tower's engineering requirements.

Main Parts of a Cooling Tower Gearbox

A gearbox consists of various mechanical components that all play a part in power transmission.

The exact internal arrangement is dependent on how the gearbox is designed, manufactured and used.

Why Gear Reduction Matters in Cooling Towers

The cooling tower fan must have a controlled rotation speed to get the desired air flow without putting unnecessary mechanical stresses on the fan.

Generally, attaching a higher speed motor directly to a large fan is not a good option for many types of cooling tower applications. The speed-reduction unit enables the fan to function within the desired speed range.

These are the things that can be achieved with proper speed reduction:

Controlled Fan Speed

The gearbox determines the output RPM of the fan system.

Torque Availability

The output shaft has to be able to produce the torque required for the fan to turn at operating speed, which is achieved by speed reduction.

Mechanical Compatibility

The gearbox is used to couple together a motor and a fan that operate at different speeds.

Stable Operation

The correct drive configuration can ensure the fan rotation and cooling performance is consistent.

Equipment Protection

When operating the fan beyond its intended speed, mechanical and aerodynamic loads of the fan can be multiplied. Avoiding such conditions is achieved by using the proper speed control.

Cooling Tower Gearboxes for Industrial Applications

Cooling tower gearboxes are employed wherever the fan(s) of a cooling tower must have an appropriate power-transmission system.

Process Manufacturing

Continuous heat removal is important for a number of industrial manufacturing processes. Large cooling towers can be supplied with the necessary flow by gear-driven fan systems.

Chemical Plants

Cooling towers can be used for chemical processing plants in continuous operation. Duty Cycle, environmental exposure and maintenance should be taken into consideration when selecting gears.

Power Generation

High capacity fans and large torque requirements can be involved for large cooling systems. In these applications, sizing of the gearbox is especially critical.

HVAC Installations

For reliable fan operation for heat rejection, a mechanically driven cooling tower may be used in large commercial cooling plants.

Heavy Industrial Cooling

Heavy industries such as steel, engineering and manufacturing may demand strong cooling systems that are operated for long periods.

Cooling Tower Gear Box Suppliers in India

SP Cooling Towers Pvt. Ltd. is a leading Cooling Tower Gear Box Suppliers in India that caters to various cooling tower drive system needs such as new installation and replacement applications.

We know that not all gearbox replacements are easy “same size” solutions. All of the existing motor, fan, shaft, mounting and gear ratio must be taken into account.

When requesting a replacement, customers can submit:

• Existing gearbox model
• Motor power
• Motor RPM
• Fan RPM
• Gear ratio
• Fan diameter
• Shaft dimensions
• Mounting details
• Photographs
• Information from existing nameplates on the gearbox.

How to Buy a Cooling Tower Gearbox

Before considering the price of Buy Cooling Tower Gear Box, technical compatibility is the first thing to be considered.

1. Determine Motor Power

The gearbox must be able to take the amount of power that is going to be produced by the attached motor.

2. Check Input Speed

The RPM of the motor dictates the speed going into the gearbox.

3. To determine Required Output RPM:

The value of the intended operating speed is crucial in determining which reduction ratio is to be used with the fan.

4. Calculate or Confirm Torque.

The output torque should take into consideration the operating load and starting conditions of the fan.

5. Verify Shaft Dimensions

The dimensions of the input and output shafts must be consistent with the equipment to be coupled.

6. Check Mounting

The configuration of the gearbox to be mounted must match the drive assembly of the cooling tower.

7. Consider Duty Conditions

Factors such as continuous operation, ambient temperature, humidity and other environmental conditions can affect the selection of gearboxes.

8. Confirm Lubrication Requirements

The type and form of lubrication and lubricant should be based on gearbox design and manufacturer's recommendations.

Cooling Tower Gear Box Price – What Determines the Cost?

Cooling Tower Gear Box Price is significantly different due to the selection of gearboxes based on the power, ratio and mechanical construction.

So specifying a “gearbox price” does not guarantee a price that is technically similar. The specification of the gearbox should be determined.

Advantages of a Properly Selected Cooling Tower Gearbox

The right transmission system can offer a number of operational benefits.

Efficient Power Transmission

The gearbox is used to send the motor power to the fan and to set the output speed.

Appropriate Torque

Torque characteristics needed for the operation of a fan is developed through speed reduction.

Controlled Fan Operation

The fan will run at the desired speed.

Improved System Compatibility

The motor and fan operating requirements are combined with the use of a suitable gearbox.

Maintenance Planning

An adequately designed gearbox allows for easier gearbox inspection and lubes practices to be set.

Common Gearbox Selection Mistakes to Avoid

Problems with the gearbox do not necessarily result from manufacturing defects. Service life may also be influenced by incorrect selection, installation or maintenance.

Avoid selecting a gearbox solely on:

• Physical dimensions
• Previous purchase price
• Motor horsepower alone
• Gearbox weight
• Output shaft size
• General appearance

Rather, view the motor, fan, RPM, ratio, torque, mounting and duty conditions as a single drive system.

This is particularly important if an older gearbox is being replaced with another.

Maintenance of Cooling Tower Gearboxes

Ongoing inspection can anticipate issues that may lead to unforeseen shutdowns.

Monitor by maintenance teams should include:

The level and condition of lubricant.

• Oil leakage
• Unusual vibration
• Abnormal noise
• Bearing condition
• Shaft alignment
• Gear temperature
• Coupling condition
• Mounting bolts
• Seal condition

The maintenance program should be based on the instructions from the gearbox manufacturer and operating conditions.

If there is an abrupt rise in noise, vibration or warm-up, don't ignore it, it may be a problem with lubrication, alignment, bearings, gears, loading.

Cooling Tower Gear Box Exporters in India

SP Cooling Towers Pvt. Ltd. as Cooling Tower Gear Box Exporters in India can assist with inquiries about cooling tower transmission equipment needed for overseas industrial and commercial projects.

Technical standards, documentation, packaging and installation conditions, etc., may be different with respect to export requirements. Therefore, the need is assessed according to the specifications of the gearbox, quantity, and purpose and application.

It is especially useful to provide replacement details of the existing gearbox or nameplate information for orders. Drawings and photographs may also help to confirm the mechanical arrangement.

Ensuring gearbox packages and handling are correct is vital as the precision-machined shafts, housings and other parts must be safe during shipping.

Technical Details to Share for a Gearbox Enquiry

Buyers should be ready to evaluate quickly and accurately to present all the following information:

These facts can help minimize "noise" in the meantime.

Why Choose SP Cooling Towers Pvt. Ltd.?

Some of the reasons are:

Cooling Tower Industry Experience

We are now a 20+ year cooling tower manufacturer and related component provider since our inception in 2004.

Application Knowledge

Our focus is on the industrial and commercial cooling system, enabling us to understand the requirements of gearboxes in the context of the entire cooling tower assembly.

Dedicated Manufacturing Infrastructure

We have our facility in Chhapraula, Gautam Buddh Nagar, Uttar Pradesh for manufacturing our cooling towers and activities related to components.

Requirement-Based Support

We will appreciate it if customers give technical information and not just choose a gearbox from a general description.

Replacement Assistance

Older gearbox data, photos, dimensions and nameplates can be reviewed for the need for replacement.

Pan-India Supply

We serve Customers in all over India for cooling tower equipment and component needs.

Buy Cooling Tower Gear Box for Your Application

The cooling tower gearbox needs to be chosen in conjunction with the entire fan-drive unit. Motor power, input RPM, gear ratio, output speed, torque, shaft dimensions, mounting and operating conditions all have a bearing on the final selection.

When looking at Buying Cooling Tower Gear Box, please provide us with the following information: Motor power, Motor RPM, Fan diameter, Fan required RPM, Gear box current information, Shaft information, Mounting information and quantity.

We can discuss the requirement and assist you to choose the correct gearbox specification for your cooling tower.

Please call us at SP Cooling Towers Pvt. Ltd. for any inquiries, replacement needs, technical support and/or quotes about Cooling Tower Gear Box.

Cooling Tower Gear Box Technical Specifications

The following specifications provide a general reference; final selection should be based on fan load, speed, torque, cooling tower capacity, and operating conditions.
