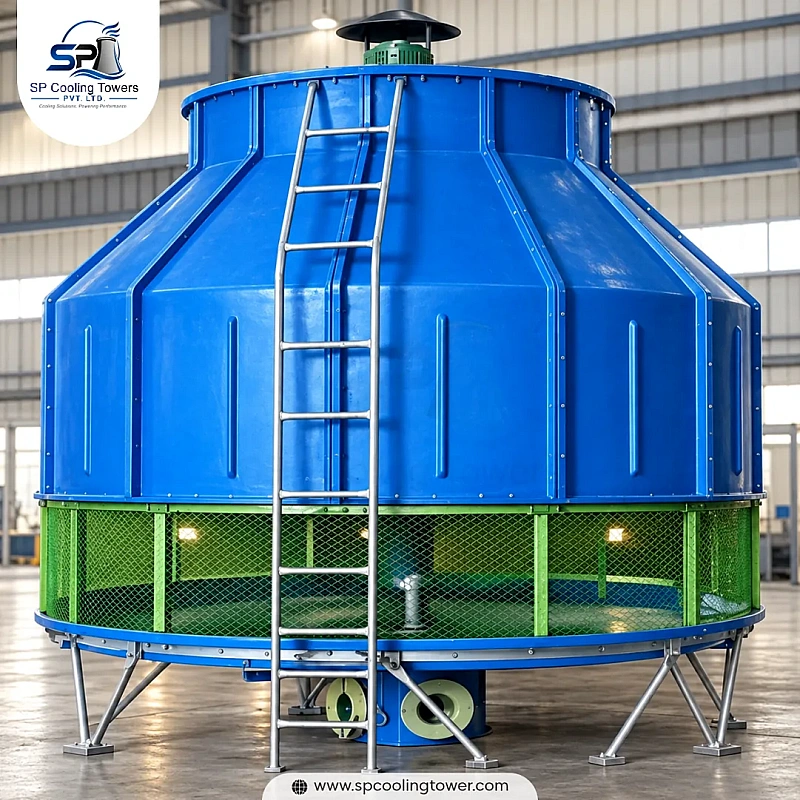

Path of Air and Water in a Round Cooling Tower
Hot water is sprayed into the tower at the top, and spreads over the fill by a rotating or fixed spray system, evenly covering the circular cross-section. The air is supplied via louvers around the entire perimeter of the tower and forced radially inwards and upwards via the fill with a single central fan, which combines with the falling water in all directions simultaneously. This is a radial, all-directional air entry which provides more equal contact between the air and water than a one-direction air flow, then the cold water is collected in the basin below and the drift is suppressed by the drift eliminators at the fan outlet.
Round Cooling Tower Suppliers in India
We maintain standard capacities as a dependable Round Cooling Tower Suppliers in India and can also provide towers constructed to an individual flow rate or foot print. Having a supplier that knows how you will be using it implies that the tower you get will fit your real cooling load and space to put it, rather than the closest standard size in a shelf. Each tower comes with full technical documentation, such as fan specifications, fill media details and general arrangement, so that your team has everything they need prior to the start of the installation process. Spares and replacement parts, such as fill media, drift eliminators and fan assemblies are also kept as separate parts, so maintenance is not a long outage.
Round Cooling Tower Specifications
Before a tower is finalised, specification must be checked with your actual heat load and installation limitations:
-
Capacity range - Mostly 5 TR to 500 TR and in the single-cell format.
-
Casing material FRP construction to be corrosion and weatherproof.
-
Fill media Fill PVC film chosen on the basis of water quality and the risk of fouling.
-
Fan type - Single central axial flow fan gear reducer or direct drive.
-
Water distribution - rotating or fixed spray system even fill coverage.
-
Drift eliminators - PVC drift eliminators to restrict water carryover to design limits.
Round vs Counterflow Cooling Tower: Major Differences
|
Factor
|
Round Cooling Tower
|
Counterflow Cooling Tower
|
|
Air flow path
|
Radial, in all directions pulled.
|
Vertical, versus the falling water.
|
|
Footprint
|
Compact, circular, space-efficient
|
Normally greater rectangular footprint required.
|
|
Fan configuration
|
Single central fan
|
Fan at the top, vertical straight draw.
|
|
Air distribution
|
Uniform from all directions
|
Cores along one vertical line.
|
|
Best suited to
|
Sites with small or ununiform space.
|
Bigger installations that are more flexible in layout.
|
What is The Reason To Use a Round Cooling Tower ?
A round cooling tower can be specified in any situation where space is limited or footprint is a significant concern compared to cooling capacity:
-
Small footprint - circular shape fits more cooling capacity in less floor or roof space.
-
Even air distribution - radial air entry, on all sides provides uniform contact of air and water in the fill.
-
Reduced concentration of structural load - weight and wind load is evenly spread around a circular base.
-
Seamless integration into existing plant rooms - smaller footprint to fit space-constrained upgrades.
Typical Round Cooling Tower Repairs and Maintenance
The majority of round cooling tower problems lead to a few common causes:
-
Uneven cooling in the tower - typically blocked or misaligned spray nozzle interfering with the even distribution of water over the fill.
-
Unnecessary loss of water - indicates broken or lost drift eliminators, or fill scaling that diverts airflow.
-
Less cooling efficiency during service-life - in most applications, untreated water causes scale or foulage, reducing the effective surface contact.
-
Fan vibration or noise - bearing wear, belt misalignment or fan blade imbalance, generally early detected during routine inspection.
-
Sediment deposits in the basin - slows down water circulation and hastens the rate of fouling unless removed on a regular cleaning schedule.
Round Cooling Tower Exporters in India
We are the well-established Round Cooling Tower Exporters in India, which provides commercial and industrial consumers in the Gulf, the Southeast as well as African markets and other export markets. All towers are dismantled and loaded, safely transported over long distances, with full documentation, and supported by installation drawings and support on commissioning, whatever the destination. Material test certificates are issued with export consignments and third-party inspection is offered by TUV, SGS or BV where the project of the buyer demands it. Parts such as assemblies like the fan, fill media and FRP panels are safeguarded separately against handling injury and moisture infiltration during extensive transit paths. Our team liaises with freight forwarders and in some cases, the local contractor of the buyer so that the tower can be delivered on-site ready to be reassembled easily.
Why Choose Us
Some of the reasons why buyers continue to select us when it comes to their round cooling tower need:
-
Towers designed to your load - sized to the real heat load, and the space available, not on a pre-determined catalogue.
-
FRP construction all the way - constructed to be resistant to the corrosion and service life in the outdoors.
-
Smaller, space-saving design - efficient on sites where capacity is less important than space.
-
Ready-to-export paperwork and packing - complete commissioning anywhere in the world.
-
After sales and maintenance services- spare parts, service and troubleshooting after installation.
-
Both custom and standard capacities are available - there is no artificial trade off between actual requirement and stock size.
Need the Right Round Cooling Tower for Your Application?
Email your heat load, flow and available space requirements and we will verify your correct tower specification prior to ordering
