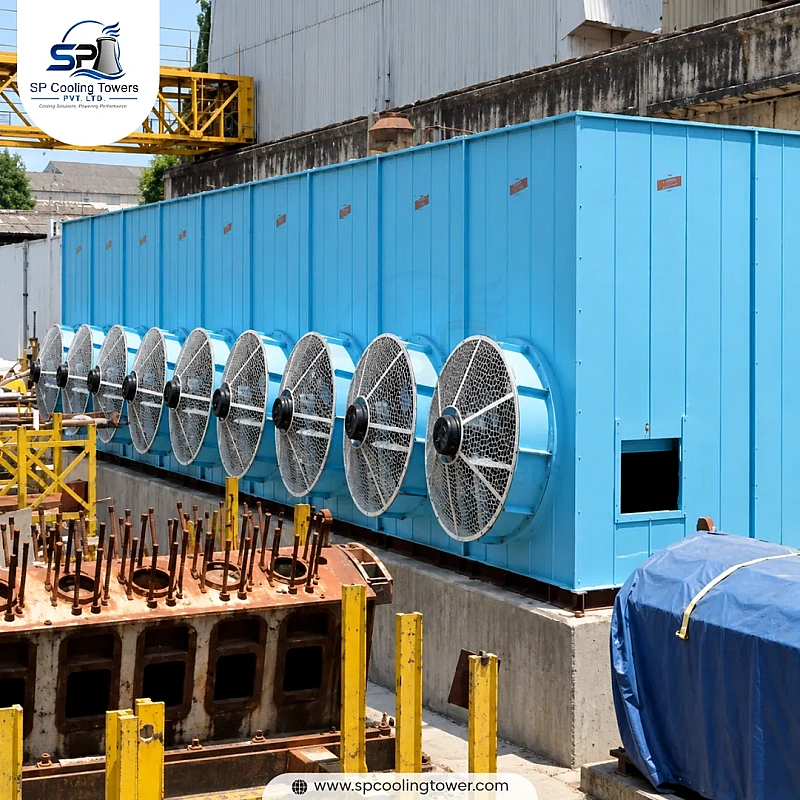

What is Forced Draft Cooling Tower
Forced Draft Cooling Tower is the cooling tower in which a fan is mounted at the air inlet to push the air through the cooling tower. It is used to cool hot circulating water by circulating air over the water, transferring heat from the water to the air.
In simple words
Hot water → distributed through the tower → fan pushes air through the tower → heat moves from water to air → cooled water is collected and recirculated.
How a Forced Draft Cooling Tower Works
A forced draft cooling tower uses a mechanically driven fan, placed close to the air inlet. Hot process water is circulated over the fill media via a water distribution system and nozzles, while atmospheric air is drawn into the tower using the fan.
During the process, heat is transferred from the water to the air as the air passes through the water. A small fraction of the water vaporizes, taking thermal energy with it from the circulating water. The cooled water accumulates in the basin and is fed back to the industrial process.
A forced draught cooling tower (FDC) performs best when airflow, water circulation, heat load, fill characteristics, and ambient wet-bulb temperature are optimally matched to one another.
Key Features & Benefits
These are some of the key features of a forced draft cooling tower:
-
Mechanically forced airflow, with the fan positioned at the air inlet
-
Corrosion-resistant FRP construction
-
Efficient air-water contact and heat transfer by evaporation
-
Application-specific fill media
-
Uniform water distribution
-
Customizable cooling capacity
-
Appropriate fan and motor set-ups
-
Easy-to-use, space-saving installation
-
Easy access for inspection and maintenance
Technical Specifications of Forced Draft Cooling Tower
Final specifications are based on the customer's process needs and cooling requirements.
|
Parameter
|
Typical Specification / Consideration
|
|
Tower Type
|
Forced Draft Cooling Tower
|
|
Construction
|
FRP / Fiber Reinforced Plastic
|
|
Airflow Arrangement
|
Mechanical forced draft
|
|
Fan Position
|
Air inlet
|
|
Cooling Principle
|
Evaporative cooling
|
|
Fan Type
|
Axial-flow / application-specific
|
|
Drive
|
Electric motor
|
|
Fill Media
|
PVC, PP, or application-specific
|
|
Water Distribution
|
Spray nozzles / distribution system
|
|
Water Flow Rate
|
Based on process requirements
|
|
Cooling Capacity
|
Based on heat load
|
|
Hot Water Temperature
|
Application dependent
|
|
Cold Water Temperature
|
Application dependent
|
|
Ambient Condition
|
Site wet-bulb temperature
|
|
Drift Control
|
Drift eliminators
|
|
Collection Basin
|
FRP basin
|
|
Applications
|
Industrial, process, and HVAC cooling
|
Trusted Forced Draft Cooling Tower Suppliers in India
SP Cooling Tower Pvt. Ltd. is a reliable Forced Draft Cooling Tower Suppliers in India
offers cooling solutions to manufacturing plants, process industries, OEMs, contractors, engineering companies, and other industrial users.
We, as a forced draft cooling tower supplier, keep in mind that More than just the nominal cooling tower capacity must be considered when choosing a cooling tower. The proper configuration depends on water circulation, thermal load, operating temperatures, ambient wet-bulb temperature, water quality, operating hours, and site dimensions.
From these parameters, the capacity of fans, fill media, water distribution arrangement, tower dimensions, and other components can be selected for the specific application.
Main Components of a Forced Draft Cooling Tower
|
Component
|
Function
|
|
FRP Tower Body
|
The main structure and body of the cooling tower is made of FRP, suited to wet and humid industrial environments.
|
|
Air Inlet Fan
|
The core of the forced draft arrangement pushes atmospheric air into the tower and creates the required airflow.
|
|
Fan Motor
|
Supplies power to the fan, selected based on desired airflow, fan characteristics, and operating conditions.
|
|
Fill Media
|
Increases the contact surface area between air and water, enabling efficient heat and mass transfer.
|
|
Water Distribution System
|
Spreads hot water evenly across the fill area to ensure uniform air-water mixing.
|
|
Nozzles
|
Distribute water through the fill based on the desired flow rate and tower configuration.
|
|
Drift Eliminators
|
Reduce the amount of water carried out with the exhaust air, minimizing unnecessary water loss.
|
|
Collection Basin
|
Cooled water collects here before being returned to the circulating process.
|
Applications of Forced Draught Cooling Tower
Forced draught cooling towers are suitable for a variety of applications requiring continuous cooling of circulating water.
|
Industry
|
Typical Application
|
|
Chemical
|
Chilling reactors, compressors, and heat exchangers
|
|
Plastic Processing
|
Cooling molding machines and hydraulic systems
|
|
Textile
|
Reducing the temperature of machinery and utility systems
|
|
HVAC
|
Condenser-water heat rejection
|
|
Power Generation
|
Cement, concrete and other allied applications
|
|
Metal Processing
|
Cooling furnaces and industrial machinery
|
|
Engineering
|
Cooling compressors and heat exchangers
|
|
Food Processing
|
Process and utility water cooling
|
|
Pharmaceutical
|
Controlled cooling for utility processes
|
Cost Savings with FRP Forced Draught Cooling Tower
Controlled Airflow
The fan is mounted at the inlet, forcing air into the tower and creating a clear path for air to pass through the water.
Effective Heat Rejection
Forced air, fill media, and water distribution work together to drive evaporative heat transfer and process-water cooling.
Corrosion Resistance
FRP construction is moisture- and corrosion-resistant, suited to high-humidity industrial environments over the long term.
Lightweight Construction
FRP allows for a relatively light structure, making it easier to handle, move, and install.
Flexible Configuration
Tower size, fan size, fill material, nozzle sizing, and other factors can be chosen to match application needs.
Forced Draft Cooling Tower Price — Key Factors
The forced draft cooling tower price depends on the complete design and configuration. Major factors include:
-
Cooling capacity and heat load
-
Water circulation rate
-
Inlet and outlet water temperatures
-
Ambient wet-bulb temperature
-
Fan size and air circulation
-
Motor capacity
-
Fill media and nozzle configuration
-
Water distribution system and drift eliminators
-
FRP specifications and tower dimensions
-
Customization, packaging, and transportation
To get a precise quote, customers should share their water flow rate, heat load, water temperature needs, ambient temperature, and installation specifications.
How to Select the Right Forced Draft Cooling Tower
These are some points you should keep in mind before selecting a forced draft cooling tower:
-
Estimate the Heat Load—the amount of heat that needs to be extracted from the process
-
Check Water Flow—determine the circulating-water flow needed for the application
-
Set Temperatures—define the hot water inlet and desired cold water outlet temperatures
-
Assess Ambient Conditions—factor in site wet-bulb temperature for cooling performance
-
Assess Water Quality—check for scaling, fouling, suspended solids, or biological growth
-
Review the Available Space—footprint, height clearance, airflow, and maintenance access
-
Match the Fan—fan air volume and motor power must match the cooling load
Maintenance of Forced Draft Cooling Tower
Thermal performance and mechanical reliability are maintained through regular maintenance. All components—including the fan, motor, shaft, and drive parts—should be checked for vibration, abnormal sound, wear, and alignment problems.
Fill media should be inspected for scaling, fouling, blockage, and biological growth. Nozzles and water distribution lines should be checked for uniformity of water flow.
The basin needs periodic cleaning to clear sediment and debris. Water treatment parameters should also be monitored to prevent scaling, corrosion, and microbial growth.
Reliable Forced Draft Cooling Tower Exporters in India
SP Cooling Tower Pvt. Ltd. is a reliable Forced Draft Cooling Tower Exporters in India with strong export experience, providing cooling equipment solutions for industrial customers, OEMs, contractors, and project exports.
Our FRP Forced Draught Cooling Tower can be customized based on water flow, cooling requirement, heat load, working temperature, ambient temperature, and installation requirements. forced draft cooling tower manufacturer. For export projects, we factor in project-specific dimensions, component configurations, packaging, documentation, and destination requirements throughout the supply process.
Why Choose SP Cooling Tower Pvt. Ltd.?
SP Cooling Tower Pvt. Ltd. specializes in application-specific cooling solutions, instead of a one-size-fits-all design approach.
-
Application-Based Selection—tower configured to heat load, water flow, temperature, and site conditions
-
FRP Construction—suited to humid and water-exposure industrial environments
-
Component Selection—fans, motors, fills, nozzles, and drift eliminators chosen for the application
-
Custom Configurations—dimensions and components adjusted to project requirements
-
Industry Coverage—chemical, plastics, HVAC, power, metal, food, pharmaceutical, and engineering sectors
-
Technical Guidance—support on key parameters before finalizing the tower
-
Domestic & Export Supply—solutions for industrial users, contractors, OEMs, and international buyers.
Get the Right Forced Draft Cooling Tower
Seeking a forced draft cooling tower manufacturer, supplier, or exporter in India? SP Cooling Tower Pvt. Ltd. offers FRP Forced Draught Cooling Tower solutions, tailored to your process needs.
Share your water flow rate, heat load, inlet and outlet water temperatures, ambient temperature, and installation requirements to discuss the right cooling tower configuration and get a quote for your application.
