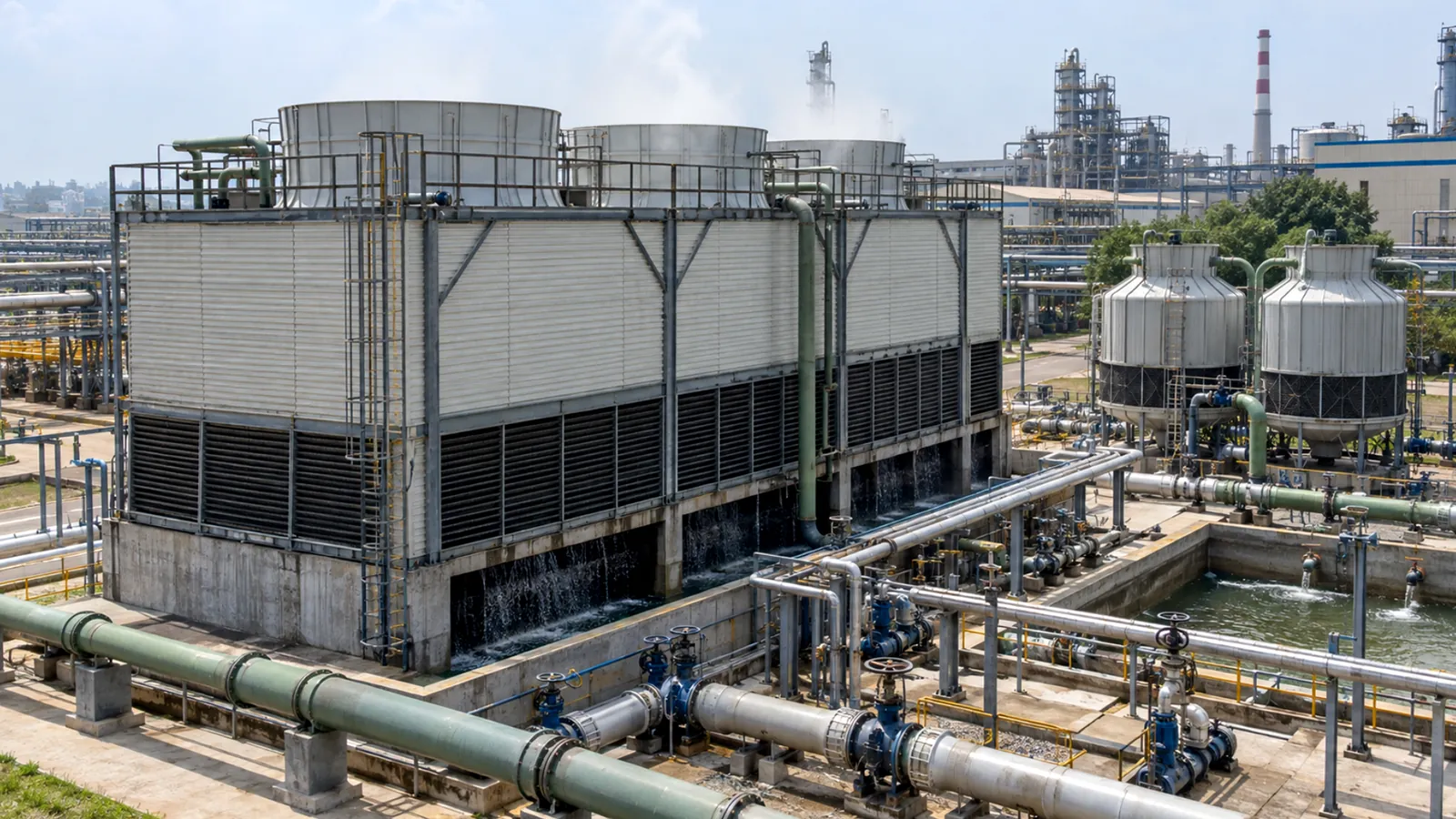

Cooling Tower Parts Maintenance: A Comprehensive Manual to Fan Blade Balancing

A cooling tower that is in good operation is hardly felt until a worn component causes an imbalance in the entire system. Unforeseen vibrations, unaccountable bursts of energy or increased call-ins to maintenance are almost always referable to the same source, i.e., forgotten components that were not serviced when needed. As a plant engineer or facility manager, it is important to ensure that the cooling tower is efficient by knowing all the components that ensure that the tower continues rotating, cooling and serving years without any unplanned interruptions.

This guide will take you through the key components, beginning with motors, to drift eliminators, with particular attention paid to one of the most ignored but crucial maintenance processes in any plant, i.e., balancing fan blades. Whether you are sourcing from established cooling tower parts manufacturers in India or maintaining an existing unit, this manual will help you keep everything running at peak performance year after year.

Cooling Tower Motor: The Heart of the System

The entire cooling process is powered by the motor, which drives the fan that forces the air through the tower and makes it possible to reject heat continuously. A malfunctioning motor translates to less airflow, less cooling capacity and an increase in the level of energy bills that silently drain plant budgets over the years. The frequent inspections ensure it runs smoothly over the years without any unexpected failures.

• Check bearings and windings quarterly.
• Alignment of the check to the gearbox and fan shaft.
• Keep track of the vibration and temperature.
• Oil as scheduled by the manufacturer.
• Safety: Insulate with tests every year.

Stable motors are also one of the most common cooling tower spares to be replaced due to the high and unforgiving usage needs in continuous industrial environments.

Cooling Tower Fills: Where Cooling Actually Happens

Nozzles evenly spread water over the fill media to provide uniform cooling and eliminate dry spots, which silently decrease the overall system efficiency. A frequent suspect of uneven distribution of water and heat transfer through the fill pack is clogged, worn, or misaligned nozzles.

• Wash the nozzles after every three months to avoid scaling.
• Immediately replace broken or misaligned nozzles.
• Uniformity of check spray patterns with routine checks.
• Specify match nozzle to tower design.
• Observe decreases in pressure that are signs of blockages.

The selection of cooling tower spares to fit nozzles directly affects the efficiency of a water distribution and the overall thermal efficiency of the tower.

Did you know?

One degree of drop in the cooling water temperature can enhance the efficiency of a chiller almost by three percent and this is why a tower is just a small part, but it counts.

Cooling Tower Fills: Where Cooling Actually Happens

Fill media is the location of actual heat exchange, and water is divided into fine droplets or thin films to provide the maximum amount of contact time with the passing air. Broken, eroded or deteriorated fills drastically reduce cooling capacity and unnecessarily overwork the whole system.

• Check the presence of algae, scale or sinking fill sheets.
• Wipe with low-pressure water and no harsh chemicals.
• Make replacements of fills that reveal over ten percent damage.
• Select PVC fill depending on your water quality.
• Confirm imbalanced water loading of the fill pack.

Quality fills sourced by reputable cooling tower parts suppliers in India will guarantee long service life and a reliable, predictable thermal performance season to season.

Cooling Tower Flow Control Valve: Balancing the Load

Multi-cell tower flow control valves are used to balance the load and ensure that there is no overflow or starvation due to the lack of water at any point in the tower. A stuck or partially closed valve may silently waste water and power over months without attention.

• Operation of test valve and response monthly.
• Look in to see corrosion or mineral deposition.
• Make sure that actuators react correctly to control signals.
• Flow rates to be calibrated according to initial design requirements.
• Inspect gaskets and seals for leaks

Such valves are frequently included in the list of key cooling tower components since they have a direct impact on water balance all the way through the entire operating system.

Quick Reference: Cooling Tower Parts List and Maintenance Frequency

Cooling Tower Fan: Powering the Airflow

Air is circulated by the fan around the whole tower and as a direct result it directly affects the cooling ability, water usage and energy usage in general. Imbalanced fans, excessive noise and early wear of all the associated components down the line are attributable to improperly maintained fans.

• Tighten up the check fan hub bolts.
• Measure blade pitch angle on all blades.
• Search for corrosion on the fan assembly.
• Make it wobble-free and drag-free.
• Hear unusual noises upon start-up.

The cooling tower spares, such as fan assemblies used in industrial cooling towers, are required to be balanced and of the highest quality to ensure that they can withstand years of continuous operation.

Cooling Tower Fan Blade: The Balancing Act

The only maintenance operation that is very critical as discussed in this manual is fan blade balancing because it safeguards almost all the other moving components of the system. Lopsided blades lead to vibration, which strains bearings, shafts, and the gearbox reducing equipment life throughout the drive train.

• Weigh and pair blades prior to installation.
• Set of check blades with constant pitch angle.
• Use dynamic balancing equipment to be truly accurate.
• Rebalance following a blade repair or replacement.
• Check blade tips to prevent erosion or cracks.

Adequate balancing minimizes vibrations, noise and energy usage which increases the life span of all parts of the tower that are connected.

Fun fact:

A 10 gram imbalance in a fan blade can generate vibration forces that are sufficient to break bolts all the way through the fan assembly in a couple of months.

Cooling Tower Fan Cylinder: Directing the Draft

The fan cylinder, or fan stack, directs the air flow effectively out of the tower and minimizes the recirculation of warm moist air back into the intake. A broken cylinder silently compromises the efficiency of an optimally balanced fan.

• Check FRP cylinders: check for cracks or delamination.
• Rust/corrosion check mounting brackets.
• Provide a smooth inner surface to airflow.
• Immediate repair of any damage in the coating to avoid water ingress.
• Check adequate clearance in the fan blades.

A properly-maintained cylinder enhances the efficiency of drafts and secures the fan blades against the long-term damages to the external weather.

Cooling Tower SS Grids: Structural Support

The grids that anchor the fill media and distribution system are made of stainless steel, which offers structural integrity as well as resistance to corrosion in an ever-wet and humid environment. Damaged or deteriorated grids may lead to collapse of fills and costly downstream losses.

• Inspect areas of grid sagging or bending.
• Check welds and support points on a regular basis.
• Clean debris obstructing water flow.
• Replace corroded parts before they compromise fill support.
• Confirm load ratings are equal to the installed fill weight.

The corrosion resistance of SS grids makes them a long lasting selection, as the fill support structure is not deteriorated even after years of constant exposure to moisture.

Cooling Tower Gear Box: Powering the Fan Correctly

The gearbox fills the motor speed to the optimum RPM to run the fans and delivers the power efficiently and also resists the constant loads of torque and vibration throughout the year. Failure of gearboxes can be costly and hard to troubleshoot at the initial stages.

• Check oil levels and change per schedule.
• Inspect for leaks around seals and gaskets.
• Check the early bearing wear by checking the noise levels.
• Check that it is in line with the motor and fan shaft.
• Monitor run time of planned servicing.

A properly serviced gearbox helps to avoid unwarranted downtime and shield the whole drivetrain against the propagation of mechanical failures throughout the system.

Cooling Tower Drift Eliminator: Conserving Water

Drift eliminators remove water droplets that are carried by the air flow to reduce the loss of water and to eliminate wet spots around the tower structure and the electrical equipment. Ill-fitted eliminators may consume a lot of water in a given season of operation.

• Check cracks or holes.
• Wash frequently to avoid air obstructions.
• Substitute distorted eliminators, which compromise performance.
• Install at the correct angle to capture the maximum number of droplets.
• Inspect panel joints

Drift eliminators are an important yet silent part of water conservation and regulatory compliance together with other cooling tower accessories.

Why Consistent Maintenance Really Matters

Missing minor checks seldom leads to a real-time crash and that is the reason why it is safe to delay them. The actual cost is reflected in months to come as compounding wear causes several parts to be on the verge of failure simultaneously, in most cases at the height of production when downtime is the most costly.

• History of track maintenance of all major parts.
• Plan budgets on scheduled replacements rather than emergency budgets.
• Train employees to be aware of warning signs.
• Have backup parts of essential parts.
• Arrange professional balancing and alignment checks every year.

A scheduled maintenance schedule, based upon the actual duty cycle of each part, is much cheaper than the reactive maintenance that is done once a failure has been detected.

Keep Your Cooling Tower Running at Peak Performance

A cooling tower is only effective when all its parts are reliable and they work collectively. Whether it is the motors, nozzles, fills or gearboxes, drift eliminators or fan assemblies, having them checked routinely and maintained on time can help avoid the small problems that might become expensive failures. Of these, the balancing of fan blades is particularly worthy of consideration since the slightest imbalance may result in excessive vibration, increased energy use, and early wear throughout the entire drive system.

An aggressive maintenance strategy does not only prolong the life of your cooling tower components but also enhances the efficiency of the cooling process, minimizes unplanned downtime and controls operating costs. Plant engineers and facility managers can achieve reliable annual-round-the-year performance with the help of an inspection and replacement timetable that should be adhered to.
